- 产品特点
- 技术规格
● 单缸、四冲程、水冷、电启动（自动启停）发动机
● 采用滚子摇臂、轻量化活塞环，降低摩擦损失
● 采用冷却系统集成式设计，结构紧凑
● 采用磁电机与起动电机二合一设计，起动速度更快，带自动启停功能
● 优化进、排气气道，燃烧更充分
（KS150F/180F）采用单缸四气门、SOHC结构（进气阻力小、充气效率高、动力强劲）
（KS150F/180F）采用强制活塞背冷设计，大幅提升活塞寿命，耐久性好
（KS150F/180F）优化冷却水道，提升冷却效率，整机工况适应性广，可靠性高
● Single-cylinder, four-stroke, water-cooled, electrical starting (ISG) engine.
● Roller rocker arm, lightweight piston ring, reduce friction loss.
● Cooling system integrated design, compact structure.
● With magneto and starter motor two-in-one design, faster starting speed, with automatic start-stop function.
● Optimized inlet and exhaust ports for fuller combustion.
(KS150F/180F) Adopts single-cylinder four-valve, SOHC structure (low intake resistance, high inflation efficiency, strong power).
(KS150F/180F) adopts forced piston back cooling design to greatly improve piston life and durability.
(KS150F/180F) Optimize the cooling water channel, improve the cooling efficiency, the whole engine is wide adaptability and high reliability.
外特性曲线 WIDE OPEN THROTTLE CURVES （KS125水冷）

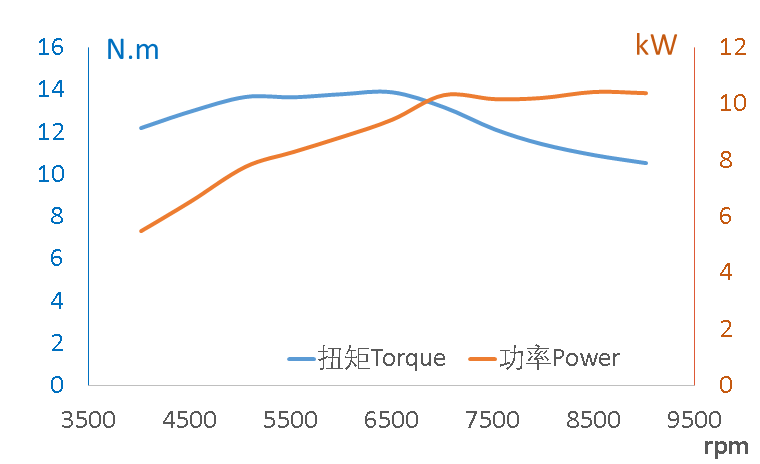

外特性曲线 WIDE OPEN THROTTLE CURVES （KS150水冷）
外特性曲线 WIDE OPEN THROTTLE CURVES （KS150F水冷）

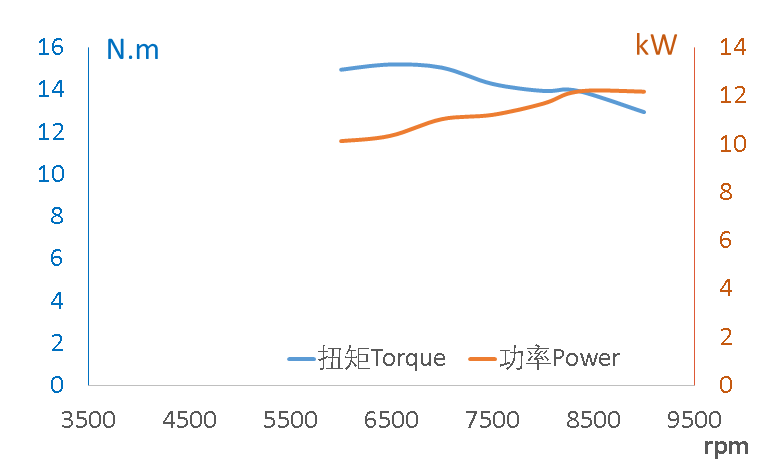

外特性曲线 WIDE OPEN THROTTLE CURVES （KS180F水冷）
.png)
悬挂图 INSTALLATION DIMENSIONS
