Motocycle Engine

Features
Technical Details

● Single cylinder, four stroke, water cooled, electric/kick starting engine.

● the basis of boiling water-cooled engine, the water channel of cylinder head is added to reduce the heat load of engine more effectively.

● With large capacity water pump, enhance the cooling effect.

● Large fin cylinder head, enhanced double cooling effect.

● Cylinder head heat sink re-overall shape, appearance stable atmosphere.

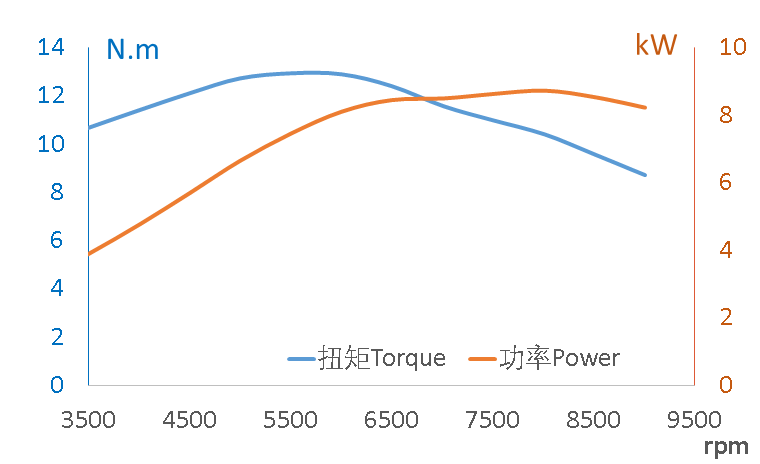

WIDE OPEN THROTTLE CURVES（CG175A水冷）

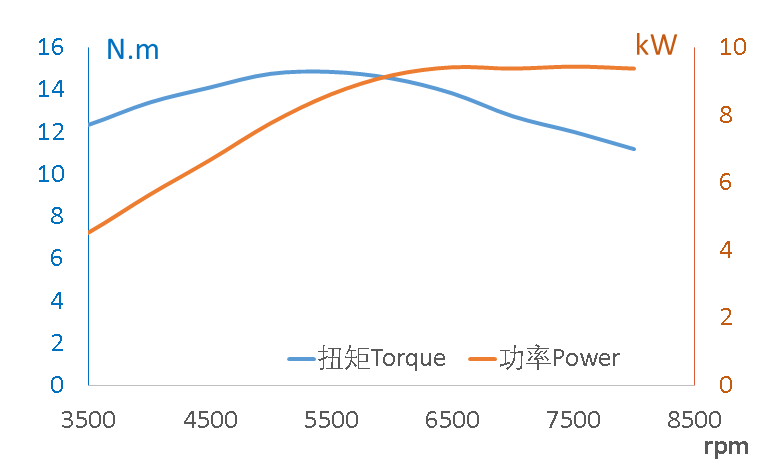

WIDE OPEN THROTTLE CURVES（CG200A水冷）

INSTALLATION DIMENSIONS

Tel：400 636 9980 Add：No.116 Juye road，C area of Jiulong industrial park， Jiulongpo district，Chongqing, China E-mail：Engine_loncin@sina.com Fax：86 23 8669 3433

ENGINE NAME	CG175A水冷
ENGINE TYPE	single cylinder,4-stroke,water-cooling,OHV,two-valve
DISPLACEMENT(ml)	175.1
NET WEIGHT(kg)	32
MAX.POWER(kW/rpm)	9.2/7500
MAX.TORQUE(N·m/rpm)	13.5/6000
COMPRESSION RATIO	9.2 ：1
BORE & STROKE(mm×mm)	62×58
FUELINJECTION METHOD	CARBURETOR/EFI
GEARSHIFT METHOD	N-1-2-3-4-5-N

ENGINE NAME	CG200A水冷
ENGINE TYPE	single cylinder,4-stroke,water-cooling,OHV,two-valve
DISPLACEMENT(ml)	193.3
NET WEIGHT(kg)	30.8
MAX.POWER(kW/rpm)	10.2/7500
MAX.TORQUE(N·m/rpm)	15/6000
COMPRESSION RATIO	9 ：1
BORE & STROKE(mm×mm)	63×62
FUELINJECTION METHOD	ARBURETOR/EFI
GEARSHIFT METHOD	N-1-2-3-4-5-N
