Premium Engine

• With Auto-choke design,Easy start by slightly pulling.

• Transistor electric ignition ensures reliable ignition and make the engine easy to start.

• Splash lubrication ensures continuous oil supply for internal components , extending engine life.

• Mechanical governor system makes engine running more stable.

• air cleaner with foam filter design Easy for customer maintenance.

• Extended oil add pipe help Customer fill oil

• Meet with EPA III and CARB Standard.

Tel：023-86693411 Add：No.116 Juye road，C area of Jiulong industrial park， Jiulongpo district，Chongqing, China Mail：06284@roller-china.com

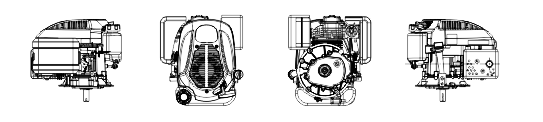

Mode	1P65FC
Engine type	Single cylinder,4stroke, forced cooling ,OHV
Net power	2.7 kW/3600rpm
Net torque	8.3/N.m/2500rpm
Fuel consumption	≤395g/kW·h
Idle speed	2200±150 rpm
Bore×Stroke	65mm×48mm
Displacement	159cc
Compression ratio	7.6:1
Lubrication system	Splash
Starting system	Recoil start
PTO shaft rotation	Anti-clockwise(from PTO side)
Valve Clearance	input valve： 0.10-0.15mm, output valve：0.15-0.20mm
Spark plug clearance	0.7~0.8mm
Ignition system	Transistorized magneto ignition
Air cleaner	Semi-dry,dual element
Dimension	371×338×275mm
Net weight	11.8kg
